20' x 50' West Face ( 2 BHK ) House Plan

on

For Plan Whatsapp Number - 9370043422


Design Details -

Ground Floor - 2 bed, Hall, Kitchen (store & puja room), attach & common toilet, Staircase. Plot area - 1000 sq.ft Builtup area - 819 sq.ft #westface #2bhkwestface

3D Front Elevation


This is a ground floor structure only. The elevation is very simple and modern. This is a budget house. The client wants attractive but low-cost elevation. so, the elevation is made in only r.c.c and brickwork. No used any other special elevational material. The only used glass used at the staircase tower. Some designs provided in the parapet wall and compound wall. Wall tiles used around the main entry door.

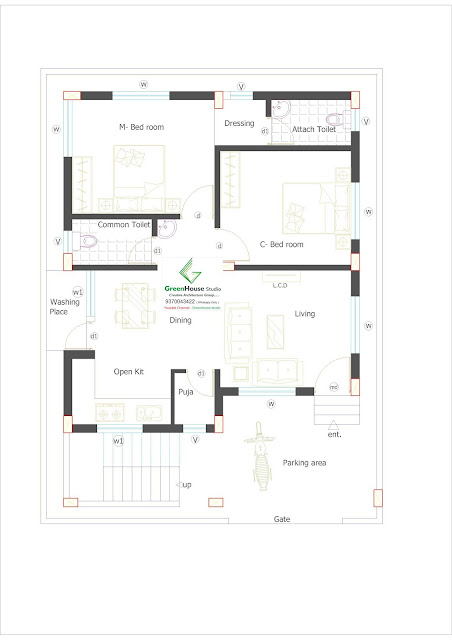

Ground Floor 2D Plan


This is a ground floor plan. The Kitchen is in the southeast corner. The children's bedroom is in the northeast corner, And the master bedroom is the southwest corner. The staircase is externally provided. Only west side roads have for this plot. A plan s very beautifully designed by us because in 1000 sq.ft you get 2bhk with car parking and with the dining hall.
