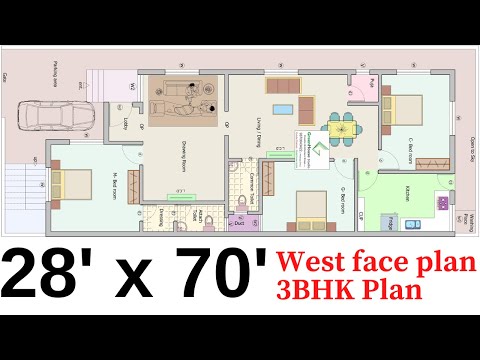

28' x 70' West Face 3 BHK House Plan

on

For WhatsApp chat- https://wa.me/message/AHRWB5RFOYUJP1

Design Details -

Ground Floor -

2 bed, Hall, Kitchen (store & puja room), attach & common toilet, Staircase, Car parking, etc.

Plot area - 1960 sq.ft Builtup area - 1475 sq.ft #westface #3bhkwestface

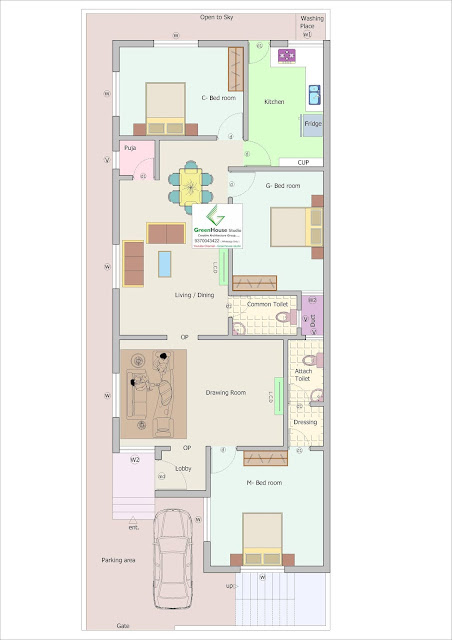

Ground Floor 2D Plan

This is a ground floor plan. The plot face is west facing. For the plot, the road has only a west side other three sides are other property. So we kept, 3'6" and the north side 3'6" passage for light ventilation. This is three bedrooms plan. The main door is north facing. The Kitchen is in the southeast corner. The children's bedroom is in the northeast corner, And the master bedroom is in the southwest corner. The staircase is externally provided. A plan s very beautifully designed by us because in 1960 sq. ft you get 3bhk with car parking and with the dining hall.
